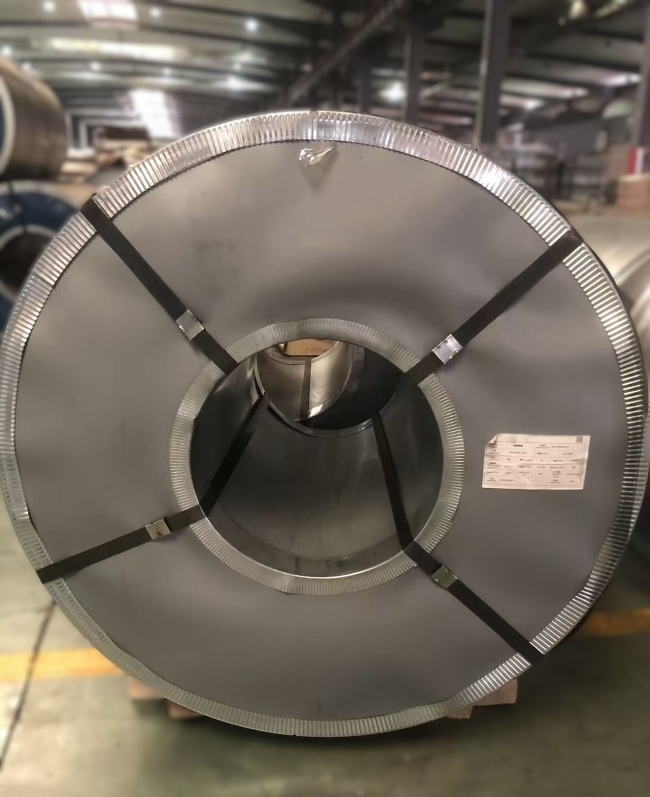

High-Strength TFS DR9 Tinplate Coils - TH415 to TH620 Hardness Grades for Food Cans
Product Description:
Electrolytic Tin Plate (ETP) and Tin Free Steel (TFS) represent advanced packaging materials engineered for superior performance in food and industrial applications. Our TFS DR9 tinplate coils feature exceptional high-strength characteristics with hardness grades ranging from TH415 to TH620, providing manufacturers with versatile solutions for demanding packaging requirements. These materials utilize an electrolytic chromium coating that offers superior paint adhesion and excellent sulfide stain resistance, making them particularly suitable for protein-rich food products like fish and meat. The DR9 temper designation ensures optimal strength and formability, while the chromium coating provides exceptional corrosion resistance without using tin, creating a cost-effective and environmentally friendly packaging solution.
Features & Advantages:
Superior paint adhesion properties for enhanced decoration and branding
Excellent sulfide stain resistance for protein-rich food packaging
High-temperature resistance maintains integrity during sterilization processes
Exceptional alkali resistance for diverse product compatibility
Environmentally friendly chromium coating solution
Excellent formability and weldability for efficient manufacturing
Multiple hardness grades accommodate various strength requirements
Cost-effective alternative to traditional tinplate materials
Applications:
Food cans for fish, meat, and protein-rich products
Aerosol containers and chemical packaging
Paint and industrial compound containers
Beverage can ends and closures
Pharmaceutical and specialty packaging
Technical Parameters:
| Property | Specifications |
|---|---|
| Material Type | TFS (Tin Free Steel), Electrolytic Tin Plate |
| Thickness Range | 0.15-0.5mm |
| Available Widths | 660-1090mm |
| Hardness Grades | TH415, TH435, TH520, TH550, TH580, TH620 |
| Surface Finish | Bright, Stone, Silver, Matte |
| Coating Options | 1.1/1.1 to 5.6/5.6 g/m² (customizable) |
| Temper Grades | DR9, T1-T5, DR7-DR9 |
| Standards | JIS G3303 Certified |
Workshop Show
Production Process
PARTNER
FAQ:
What are the main advantages of TFS over traditional tinplate?
TFS offers superior paint adhesion, excellent sulfide resistance, and cost-effectiveness while maintaining similar corrosion protection properties.
How quickly can I get price information?
We typically provide quotations within 24 hours of receiving your inquiry, excluding weekends and holidays.
Can I order samples before placing a bulk order?
Yes, we welcome sample orders and can provide material samples for your testing and evaluation.
What is your standard lead time for production?
Lead times vary by order quantity, typically 7-15 days for smaller quantities and up to 30 days for larger production runs.
What payment terms do you accept?
We primarily accept T/T payments, though terms are negotiable based on order size and customer relationship.
